Comparison of Protective Performance of EVA Tool Kits of Different Thicknesses

Comparison of Protective Performance of EVA Tool Kits of Different Thicknesses

I. The Core Relationship Between EVA Thickness and Protective Performance

The protective capability of an EVA (ethylene-vinyl acetate copolymer) tool kit is essentially determined by the material’s thickness, density, and structural design, with thickness being the most directly influencing factor. The core principle lies in the fact that the “molecular spring” formed by the closed-cell microstructure absorbs impact energy through elastic deformation. Thickness directly determines the deformation buffer space and energy absorption limit. Experimental data shows that for every 5mm increase in thickness, the impact attenuation rate of EVA material increases by an average of 15%-20%, but when the thickness exceeds a critical value, the protective gain gradually decreases.

II. Actual Comparison of Protective Performance in Four Thickness Ranges

1. Thin Range (2-5mm): Basic Protection Prioritizing Lightweightness
Protective Characteristics: Primarily focused on lightweight and portability, with limited cushioning performance but sufficient for minor impacts. 5mm thick EVA can attenuate more than 60% of the energy when subjected to a 5kg impact, but it cannot withstand severe drops or high-frequency vibrations. Key Data:
* **Drop Weight Test (1m height, 200g metal tool):** No obvious surface damage, but slight displacement of the internal tool may occur.
* **Vibration Transmission Rate:** Transmission rate reaches 40% under low-to-medium frequency vibration, unsuitable for precision instrument protection.
* **Abrasion Resistance:** Taber abrasion ≤120mg/1000 rpm (1kg load).
* **Typical Applications:** Electronic digital accessories (data cables, earphones), lightweight hand tools (small screwdrivers, gauges), suitable for everyday carrying.

2. Medium-Thin Range (6-10mm): Balancing Protection and Portability
* **Protective Characteristics:** Balancing cushioning and structural strength, the damping ratio significantly improves at 10mm thickness, making it the most cost-effective range. High-density formulas (60-80 Shore C) achieve a “thin yet strong” protective effect, while low-density formulas (38-50 Shore C) enhance fit through flexibility. Key Data:
* **Impact Absorption:** 8mm thickness can withstand 80J of impact energy, with a deformation recovery rate >95%.
* **Vibration Protection:** Low-frequency vibration transmission rate reduced to 25%, suitable for automotive transportation scenarios.
* **Environmental Resistance:** Maintains stable elasticity within a temperature range of -20℃ to 60℃, with no risk of brittle fracture.

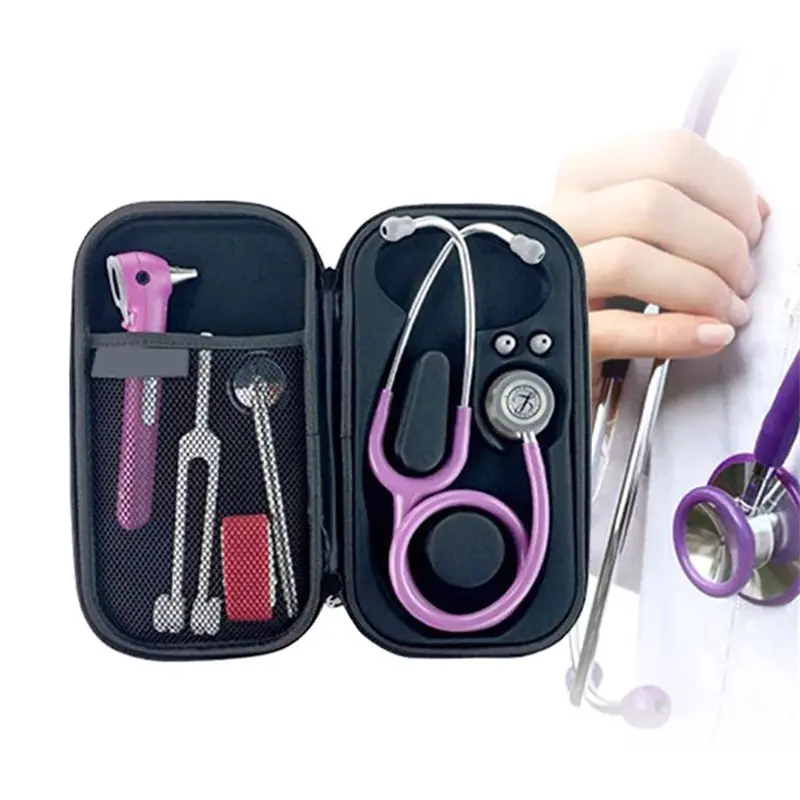

* **Typical Applications:** Hardware tools (socket wrenches, pliers), medical consumables (small diagnostic instruments), drone accessories, meeting the needs of routine operations and short-distance transportation.

3. Medium-Thickness Range (11-15mm): Enhanced Protection for Precision Equipment
* **Protective Characteristics:** Through gradient density design (high-density surface layer disperses impact + low-density middle layer absorbs energy), a “layered buffering” effect is achieved. 15mm thick EVA can absorb more than 85% of impact energy while also possessing fatigue resistance—the deformation recovery rate remains ≥90% after 100,000 cycles of compression. Key Data: Drop Test (1.5m height, 5kg tool): 100% internal tool integrity. Vibration Response: Significantly reduced resonant frequency, no obvious resonance peak. Moisture and Heat Resistance: No hydrolytic degradation after 500 hours at 85℃/85% RH. Typical Applications: Electronic measuring instruments (multimeters, oscilloscope probes), industrial sensors, small to medium-sized power tools, suitable for complex working environments and long-distance transportation.

4. Thickness Range (15mm and above): Ultimate protection for extreme environments. Protective Characteristics: Primarily designed for heavy impact and harsh environment protection; a 30mm thickness can absorb over 90% of impact force, comparable to professional cushioning pads. Requires a high VA content (28%-40%) formula to avoid reduced adhesion due to the stiffness of thicker materials. Key Data: Extreme Impact: Withstands a 200kg object dropped from a height of 1.5m, with surface dent <2mm and recovery within 2 seconds. Temperature Range: Maintains over 90% energy absorption efficiency from -30℃ to 80℃. Structural Strength: Can withstand loads exceeding 20kg without deformation. Typical Applications: Heavy machinery parts, precision optical equipment, outdoor adventure tools; suitable for storage needs in extreme environments such as high altitudes and deserts. III. Three Key Factors Influencing Thickness Selection

Tool Characteristics Priority:
* Precision/Fragile Tools (e.g., medical devices, sensors): Prioritize 11-15mm high-density EVA.
* Heavy Metal Tools (e.g., wrenches, drills): 15mm or thicker + reinforced inner lining design.
* Lightweight Portable Tools: 2-5mm thin EVA is sufficient.
* Environmental and Scenarios Adaptability:
* High-Frequency Movement/Outdoor Use: 6-10mm balances protection and portability.
* Long-Term Storage/Long-Distance Transportation: 11mm or thicker + waterproof coating.
* Low Temperature/Hot and Humid Environments: Prioritize modified EVA formulations to avoid performance degradation due to excessive thickness increases.
* Synergistic Effect of Density and Thickness:
* High-Density EVA (60-80 Shore C): Can reduce thickness by 20%-30% while maintaining the same level of protection.
* Low-Density EVA (38-50 Shore C): Requires an increase of 10%-15%. Thickness to Compensate for Insufficient Cushioning

IV. Industry Selection Guide: Avoid Two Major Misconceptions

❌ Misconception 1: The thicker the better – Thicknesses above 15mm, without a gradient density design, may cause vibration response spikes, actually reducing protective effectiveness.

✅ Correct Logic: Choose the critical thickness based on tool weight × impact risk × portability requirements (e.g., 10mm thickness for a 5kg tool).

❌ Misconception 2: Ignoring the Influence of Formulation – At the same thickness, EVA with 35% VA content has 40% higher energy absorption efficiency than EVA with 15% VA content.

✅ Correct Logic: Thickness selection must be combined with material formulation; for high-precision scenarios, prioritize a combination of high VA content and high density.

Conclusion: The essence of choosing the thickness of an EVA tool kit is “the art of balancing protection needs with usage costs.” 2-5mm prioritizes portability, 6-10mm balances practicality, 11-15mm offers precise protection, and 15mm and above handles extreme conditions—only through a combination of laboratory data and industry practice can every bit of thickness be translated into effective protection. It is recommended to accurately match the thickness to the tool’s characteristics and usage scenario, referring to the above data model to avoid cost waste due to over-protection or tool damage due to insufficient protection.
