EVA Case Zipper and Hardware Specs: A B2B Sourcing Guide for Tool, Medical and Instrument Brands

When importers and brand owners evaluate an EVA case supplier, the conversation usually starts with the shell, the foam insert and the tooling cost. Those items matter, but the parts that actually fail in the field are smaller and cheaper — and far more likely to generate warranty claims and angry distributor emails. Zippers jam. Pullers snap. Buckles crack in cold weather. Rivets loosen after the third drop. By the time a $40 case comes back as a $120 return-plus-shipping problem, the savings from specifying a cheaper slider have long disappeared.

This guide is written for procurement managers, brand owners and private-label distributors who specify EVA cases at volume — typically 1,000 to 50,000 units per SKU per year. It covers the zipper and hardware vocabulary you need, the numbers that separate a duty-grade part from a toy-grade part, and a spec-sheet template you can paste straight into a purchase order. We will not tell you which supplier to use. We will tell you what to write on the order so the case you receive matches the case you approved.

Why Zipper and Hardware Specs Decide Case Lifetime

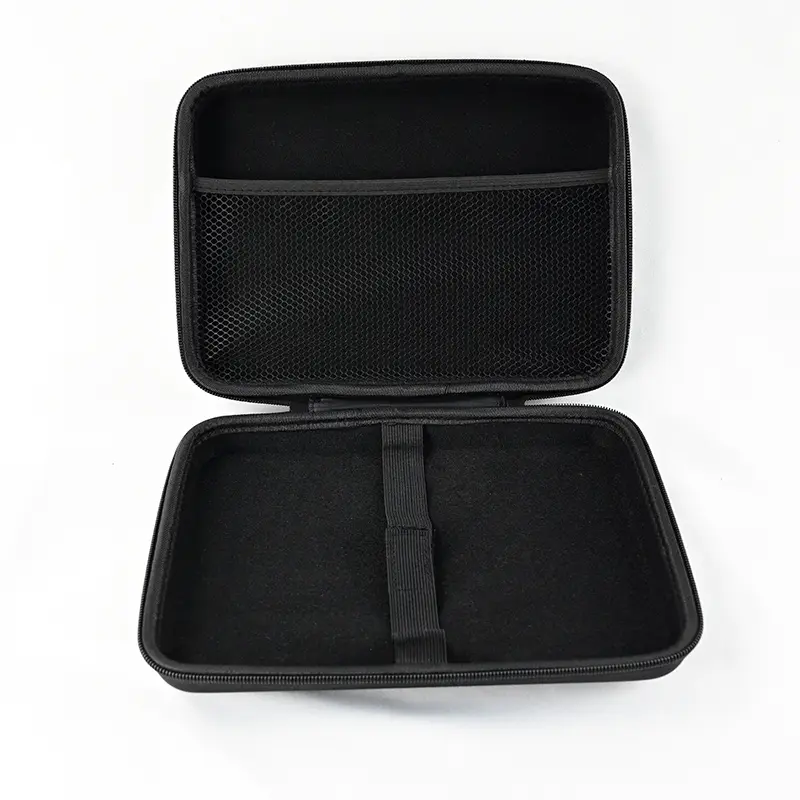

An EVA case is a system. The moulded shell takes the headline impact; the foam insert protects the product; but the zipper is the only moving closure most cases have, and it is cycled thousands of times across the product’s life. A field service engineer opening a test-instrument case twice a day will hit roughly 1,500 open-close cycles in two years. A retail display case opened weekly may only see 100. The duty cycle — not the unit price — should drive your spec.

Hardware follows the same logic. A side-release buckle on a shoulder strap sees tensile load every time the case is carried. A D-ring rated for 25 kg behaves very differently from one stamped for 8 kg. When these parts are underspecified, failures cluster in the first 90 days of real-world use, which is exactly when your end customer has formed their opinion of your brand.

Zippers account for an estimated 40–60% of all EVA case hardware failures reported by distributors.
Pullers and sliders are the next cluster, especially on cases pulled open by the corner rather than the tab.
Buckles and webbing fail less often but cause the most expensive losses — usually a dropped $2,000 instrument.

Zipper Sizes and Tooth Types — Reading the #3, #5, #8, #10 Code

The number on a zipper is the chain width in millimetres when closed. It is the single most useful spec line on a hardware schedule, and most quotations omit it. Here is the working range for EVA cases:

#3 zipper — ~3 mm chain. Used on small pouches, cable organizers and slim accessory cases. Light duty, rated for roughly 200–400 g of closure pull.
#5 zipper — ~5 mm chain. The industry default for tool cases, electronics cases and most 250–400 mm cases. Handles daily cycling well.
#8 zipper — ~8 mm chain. Specified for medical kits, drone cases and instrument cases where the lid is heavy or the seal matters.
#10 zipper — ~10 mm chain. Rare in EVA but used on large protective cases and cases with a waterproof tongue.

For most B2B tool and instrument cases, the #5 resin zipper is the sweet spot: wide enough to survive field abuse, narrow enough to keep tooling and per-unit cost reasonable. Step up to #8 when the case exceeds 350 mm on its longest side or when the lid carries internal foam that adds closing resistance.

Nylon Coil, Resin and Metal — What the Teeth Are Made Of

Three tooth constructions dominate the EVA case market, and they are not interchangeable:

Nylon coil (continuous coil) — flexible, quiet, cheap. Good for light cases but the coil can separate if a tooth is forced. Typical cost delta: +$0.02–0.05 per case vs metal.
Resin/plastic moulded teeth — the EVA-case standard. Rigid, colour-matched, resists corrosion. Best all-round choice for branded cases.
Metal (brass or aluminium) — premium feel, higher cost (+$0.15–0.40 per case), and a real corrosion risk in humid or coastal markets unless plated.

Resin wins for the majority of B2B programmes because it colour-matches the shell, weighs less, and does not rust. Reserve metal only for premium lines where the tactile click justifies the price and the distribution region is dry.

Waterproof TPU Zippers and What IPX Actually Means

If your case is marketed as water-resistant, the zipper — not the shell — is the weak point. A standard resin zipper leaks at the stitch line. A waterproof zipper uses a TPU or PVC tape welded to the case, with a fin that the closed chain compresses. Realistic expectations:

Splash resistance (IPX4-equivalent) — standard zipper plus a flap. Fine for rain and bench use.
Spray resistance (IPX5) — TPU taped zipper, no full submersion.
Submersion-rated — requires a fully welded TPU zip and sealed seams; rarely achieved in standard EVA tooling and usually a cost step of +$0.80–2.00 per unit.

Do not let a supplier claim “waterproof” without a test method. Ask for the test depth and duration. A credible claim is something like “survives 30 minutes at 0.5 m depth, zipper side up” — anything vaguer is marketing.

Pullers, Sliders and Locks — Small Parts, Big Failures

The slider is the mechanism; the puller is what the user grabs. Both deserve a line on your spec sheet.

Auto-Lock vs Non-Lock Sliders

An auto-lock slider has a spring cam that holds the slider in place unless the puller is lifted. On a case carried by hand or worn on a shoulder, a non-lock slider can creep open under vibration — the classic “I opened my bag and everything fell out” failure. Auto-lock adds roughly $0.03–0.08 per slider but eliminates a whole class of complaints. For any case transported in a vehicle or shipped, specify auto-lock by default.

Non-lock slider — acceptable only for display or countertop cases that are never moved.
Auto-lock slider — standard for tool, medical and instrument cases.
Double-pull / two-way slider — useful on long cases (450 mm+) so the opening can start from either end.

Custom Puller Branding Without Breaking the Tooling Budget

The puller is the cheapest place to put your logo. Options, in ascending cost:

Printed puller — logo pad-printed on a standard metal or resin puller. ~+$0.02–0.05 each.
Debossed or embossed puller — logo pressed into a custom-moulded puller. Requires a small puller mould (~$80–200 one-time).
Die-cast custom puller — full custom shape (your icon). Mould cost ~$150–500, best for premium lines at 5,000+ units.

A printed puller at +$0.03 is the rational choice for most private-label programmes. Reserve the custom die-cast puller for hero SKUs where brand recall justifies the tooling.

Buckles, Webbing and D-Rings — Load Paths and Failure Modes

Any case with a handle, strap or lid latch routes load through hardware. The failure mode is rarely dramatic — it is a slow crack that propagates until the strap lets go.

Side-release buckle — the plastic clip on straps. Spec the mate/unmate force; a good one holds 20–40 kg and releases at 5–10 kg finger pressure.
Ladder-lock buckle — used for webbing adjustment. Cheaper, lower load rating (~10–15 kg).
D-ring / triangle ring — check the stamping thickness. A 1.2 mm stamped ring rates ~8 kg; a 2.0 mm welded ring rates ~25 kg.

For cases carrying anything above 5 kg, specify the buckle mate force and the ring rating in writing. The cost difference between an 8 kg ring and a 25 kg ring is cents; the difference in a dropped-instrument claim is thousands.

Corner Protection, Feet and Rivets — Where Cases Actually Die

The corners and base take the impacts. Two cheap upgrades pay back fast:

Rubber feet — 4–6 mm moulded or glued feet extend case life by keeping the shell off abrasive surfaces. Cost ~+$0.05–0.15.
Reinforced corners — a thicker EVA ply or an injected corner bumper at high-wear points.
Rivets vs ultrasonic weld — rivets are serviceable but can loosen; ultrasonic or thermal welds are cleaner but not field-repairable. For cases opened daily, specify riveted handles with a thread-lock note.

Tip: Always request a salt-spray test report on metal hardware if your cases ship to coastal or tropical markets — corrosion complaints surface 6–12 months after delivery, long after the QC window has closed.

Corrosion Resistance and Salt-Spray Grades for Marine and Medical Use

If your cases serve marine, offshore, lab or tropical markets, metal hardware needs a corrosion grade. The common reference is the neutral salt-spray (NSS) test per ASTM B117:

24-hour NSS — basic plated parts, indoor or dry-climate use.
48–96 hour NSS — the 48–96 hour salt-spray test band we recommend for any metal puller or ring in humid regions.
240+ hour NSS — marine/offshore grade; expect a cost step of +$0.10–0.30 per metal part.

Even resin hardware benefits from UV-stabilised colourants in outdoor programmes; ask whether the colourant is UV-rated, not just “black” or “grey”.

A Procurement Checklist — The Spec Sheet You Should Send

Turn the above into a one-page attachment on every RFQ. A supplier who can answer all lines is one you can trust with volume:

Zipper: size (#3/#5/#8/#10), tooth material, colour, waterproof Y/N, slider type (auto-lock), puller treatment (print/deboss/cast).
Buckles: type, mate force (kg), release force (kg), material, colour.
Rings: type, stamping thickness (mm), rated load (kg).
Feet: count, height (mm), fixed or replaceable.
Corrosion: NSS hours for any metal part; UV rating for coloured resin.
Certificates: salt-spray report, REACH/RoHS declaration, zipper brand (YKK / SBS / local).

Note the zipper brand. Named chains (YKK, SBS, IDEAL) carry consistent tolerances and are easier to re-order years later. A “no-name” zipper may shift spec between production runs, silently changing your case.

Balancing Cost Against Spec — Where to Upgrade, Where to Save

You do not need marine grade on every part. A sensible cost map:

Upgrade to auto-lock sliders on every transported case — near-zero cost, high payoff.
Upgrade to #8 zipper on cases over 350 mm or with heavy lids.
Upgrade to 48-hour+ NSS metal only where the market demands it.
Save by using printed (not cast) pullers on volume SKUs.
Save by standardising one zipper size and one puller across your range — it simplifies re-orders and lets you amortise tooling.

The goal is not the cheapest part; it is the cheapest total cost of ownership. A $0.10 upgrade that prevents a 3% return rate on a 10,000-unit run saves more than the entire hardware line on a cheaper spec.

FAQ

How do I know if a #5 zipper is strong enough for my tool case?

For cases up to ~350 mm on the longest side carrying under 5 kg of contents, a #5 resin zipper with an auto-lock slider is the proven standard across the industry. If your case is larger, heavier, or the lid carries thick foam, step up to #8. The deciding factor is closing resistance, not shell size alone.

What is the real cost difference between metal and resin zippers?

Resin zippers typically add $0.02–0.05 per case over nylon coil and avoid corrosion entirely. Metal (brass/aluminium) adds $0.15–0.40 per case plus potential plating cost, and introduces a rust risk in humid markets. For most B2B programmes resin is the rational default; metal is a premium-line choice.

Should I specify a custom-moulded puller for a new product launch?

Only if the SKU will run 5,000+ units and brand recall matters. A printed puller at +$0.02–0.05 delivers most of the branding value. A die-cast custom puller needs a $150–500 mould and only pays back at volume. Start with printed, move to cast once the SKU proves itself.

What salt-spray grade should I require for medical or lab cases?

Require a 48–96 hour neutral salt-spray (ASTM B117) result on any metal hardware, and a UV-rated colourant on coloured resin. Marine or offshore programmes should push to 240+ hours, accepting the +$0.10–0.30 per-part step. Always ask for the test report, not just a verbal claim.

Can I mix zipper sizes within one product family?

You can, but standardising one size (typically #5) and one puller across the family simplifies purchasing, re-orders and tooling amortisation. Reserve #8 for the genuinely large cases. Mixing arbitrarily raises minimum order quantities and complicates QC.

How many open-close cycles should a good EVA case zipper survive?

A well-specified #5 resin zipper with an auto-lock slider should comfortably exceed 1,000–1,500 cycles in normal use, which covers roughly two years of daily field service. Ask your supplier for their cycle-test data; a credible answer cites a test method and a cycle count, not “very durable”.
